Datapoints for p + ti69 -> n + v69
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.268462e-15 |
| 0.15 | 2.859071e-11 |
| 0.2 | 6.040545e-09 |
| 0.3 | 4.200583e-06 |
| 0.4 | 2.796399e-04 |
| 0.5 | 5.922388e-03 |
| 0.6 | 6.286317e-02 |
| 0.7 | 4.195082e-01 |
| 0.8 | 2.007293e+00 |
| 0.9 | 7.487546e+00 |
| 1 | 2.304393e+01 |
| 1.5 | 1.065849e+03 |
| 2 | 1.015379e+04 |
| 2.5 | 4.627777e+04 |
| 3 | 1.421382e+05 |
| 3.5 | 3.460649e+05 |
| 4 | 7.264928e+05 |
| 4.5 | 1.376781e+06 |
| 5 | 2.416757e+06 |
| 6 | 6.229618e+06 |
| 7 | 1.310531e+07 |
| 8 | 2.269668e+07 |
| 9 | 3.212532e+07 |
| 10 | 3.669065e+07 |

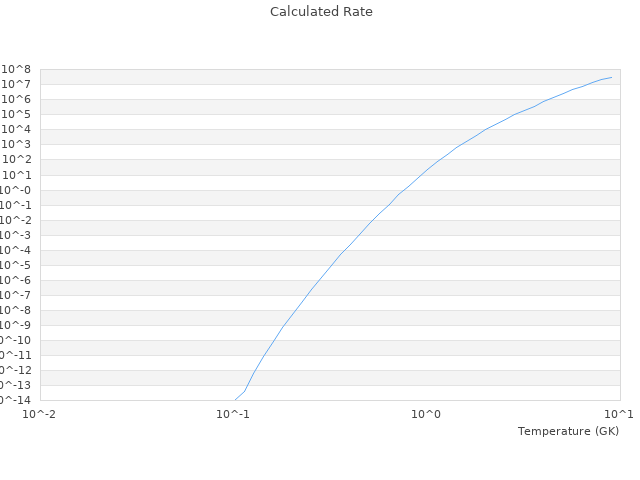

| View Graph | |
