Datapoints for n + v71 -> p + ti71
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 3.655671e-263 |
| 0.5 | 5.511238e-210 |
| 0.6 | 2.166582e-174 |
| 0.7 | 7.115851e-149 |
| 0.8 | 1.125427e-129 |
| 0.9 | 1.064059e-114 |
| 1 | 1.092353e-102 |
| 1.5 | 1.875654e-66 |
| 2 | 3.442336e-48 |
| 2.5 | 3.685450e-37 |
| 3 | 9.288214e-30 |
| 3.5 | 1.964681e-24 |
| 4 | 2.088644e-20 |
| 4.5 | 3.013694e-17 |
| 5 | 1.069203e-14 |
| 6 | 7.933219e-11 |
| 7 | 4.943435e-08 |
| 8 | 6.119024e-06 |
| 9 | 2.397667e-04 |
| 10 | 3.900060e-03 |

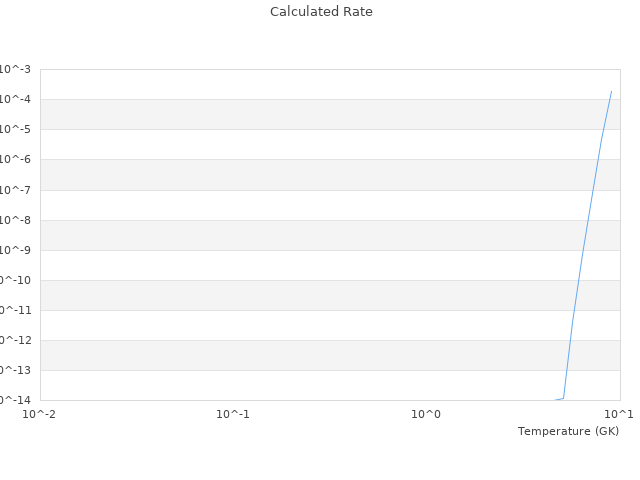

| View Graph | |
