Datapoints for p + ti71 -> n + v71
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.132669e-15 |
| 0.15 | 2.718865e-11 |
| 0.2 | 5.743477e-09 |
| 0.3 | 3.986799e-06 |
| 0.4 | 2.654755e-04 |
| 0.5 | 5.630310e-03 |
| 0.6 | 5.986993e-02 |
| 0.7 | 4.002574e-01 |
| 0.8 | 1.918400e+00 |
| 0.9 | 7.166658e+00 |
| 1 | 2.208502e+01 |
| 1.5 | 1.025741e+03 |
| 2 | 9.790697e+03 |
| 2.5 | 4.467824e+04 |
| 3 | 1.373940e+05 |
| 3.5 | 3.350144e+05 |
| 4 | 7.045919e+05 |
| 4.5 | 1.338191e+06 |
| 5 | 2.354810e+06 |
| 6 | 6.103238e+06 |
| 7 | 1.291242e+07 |
| 8 | 2.248080e+07 |
| 9 | 3.195887e+07 |
| 10 | 3.661106e+07 |

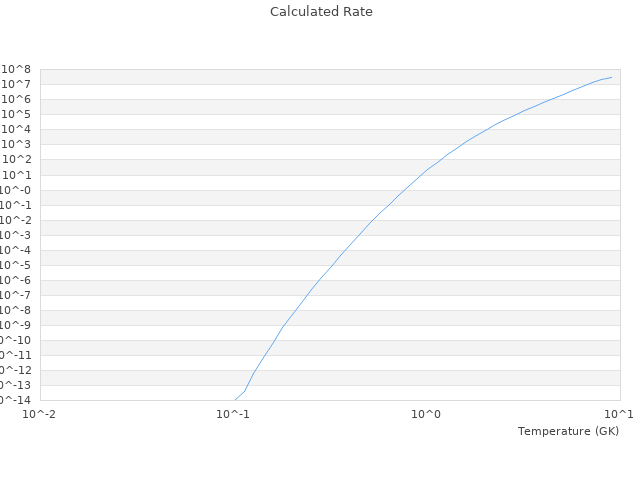

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
