Datapoints for n + v73 -> p + ti73
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 3.768954e-295 |
| 0.5 | 1.017348e-235 |
| 0.6 | 5.907799e-196 |
| 0.7 | 1.847737e-167 |
| 0.8 | 5.014866e-146 |
| 0.9 | 2.595542e-129 |
| 1 | 6.554821e-116 |
| 1.5 | 1.683817e-75 |
| 2 | 3.796437e-55 |
| 2.5 | 7.306689e-43 |
| 3 | 1.265735e-34 |
| 3.5 | 1.062171e-28 |
| 4 | 3.176929e-24 |
| 4.5 | 1.025477e-20 |
| 5 | 6.931533e-18 |
| 6 | 1.353440e-13 |
| 7 | 1.683620e-10 |
| 8 | 3.497855e-08 |
| 9 | 2.047789e-06 |
| 10 | 4.584319e-05 |

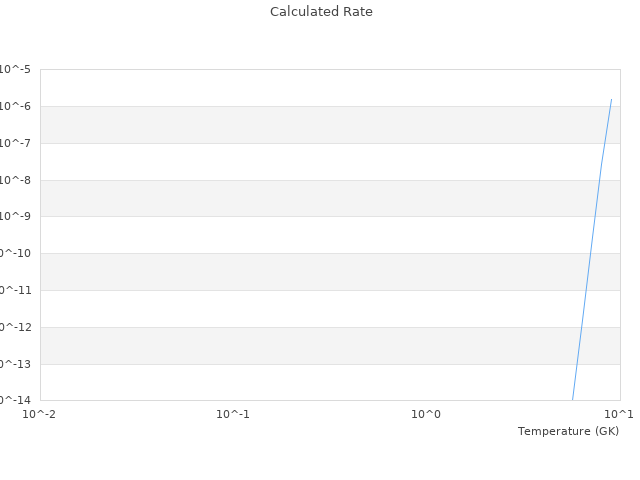

| View Graph | |
