Datapoints for he4 + ti75 -> n + cr78
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.886692e-89 |
| 0.15 | 3.864748e-59 |
| 0.2 | 7.174916e-44 |
| 0.3 | 4.695826e-29 |
| 0.4 | 3.320449e-22 |
| 0.5 | 2.226719e-18 |
| 0.6 | 6.243837e-16 |
| 0.7 | 3.441188e-14 |
| 0.8 | 7.651442e-13 |
| 0.9 | 9.884117e-12 |
| 1 | 9.033994e-11 |
| 1.5 | 4.621733e-07 |
| 2 | 2.857609e-04 |
| 2.5 | 4.388599e-02 |
| 3 | 2.125674e+00 |
| 3.5 | 3.921507e+01 |
| 4 | 3.288913e+02 |
| 4.5 | 1.477505e+03 |
| 5 | 4.124626e+03 |
| 6 | 1.290575e+04 |
| 7 | 2.443410e+04 |
| 8 | 5.579424e+04 |
| 9 | 2.634715e+05 |
| 10 | 3.936918e+06 |

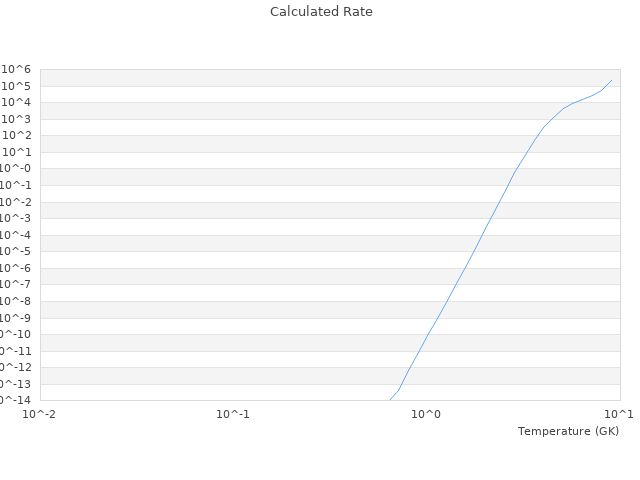

| View Graph | |
