Datapoints for n + ti76 -> ti77
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.952546e-259 |
| 0.15 | 5.589988e-156 |
| 0.2 | 7.164902e-107 |
| 0.3 | 9.684494e-62 |
| 0.4 | 6.007418e-42 |
| 0.5 | 1.703182e-31 |
| 0.6 | 2.688050e-25 |
| 0.7 | 2.668783e-21 |
| 0.8 | 1.517652e-18 |
| 0.9 | 1.545576e-16 |
| 1 | 5.305359e-15 |
| 1.5 | 1.745209e-10 |
| 2 | 6.884459e-08 |
| 2.5 | 5.248957e-06 |
| 3 | 1.420085e-04 |
| 3.5 | 1.715879e-03 |
| 4 | 1.071968e-02 |
| 4.5 | 3.911271e-02 |
| 5 | 9.302114e-02 |
| 6 | 2.157149e-01 |
| 7 | 2.687168e-01 |
| 8 | 3.183760e-01 |
| 9 | 5.707689e-01 |
| 10 | 2.258609e+00 |

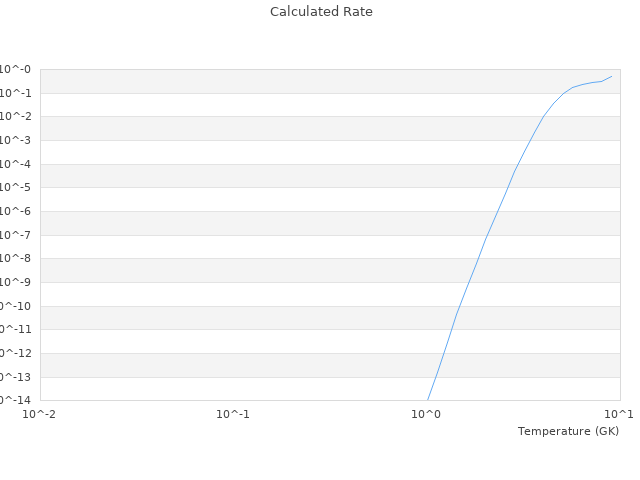

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
