Datapoints for ti77 -> n + ti76
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.035516e-108 |
| 0.15 | 3.253652e-52 |
| 0.2 | 1.131043e-26 |
| 0.3 | 4.947473e-05 |
| 0.4 | 6.271231e+03 |
| 0.5 | 1.858067e+07 |
| 0.6 | 6.842101e+08 |
| 0.7 | 3.459735e+09 |
| 0.8 | 6.851845e+09 |
| 0.9 | 8.728633e+09 |
| 1 | 9.153776e+09 |
| 1.5 | 9.818612e+09 |
| 2 | 2.512294e+10 |
| 2.5 | 1.005525e+11 |
| 3 | 4.010901e+11 |
| 3.5 | 1.279812e+12 |
| 4 | 3.025607e+12 |
| 4.5 | 5.293901e+12 |
| 5 | 7.111390e+12 |
| 6 | 7.260104e+12 |
| 7 | 5.217152e+12 |
| 8 | 4.202993e+12 |
| 9 | 5.699760e+12 |
| 10 | 1.834480e+13 |

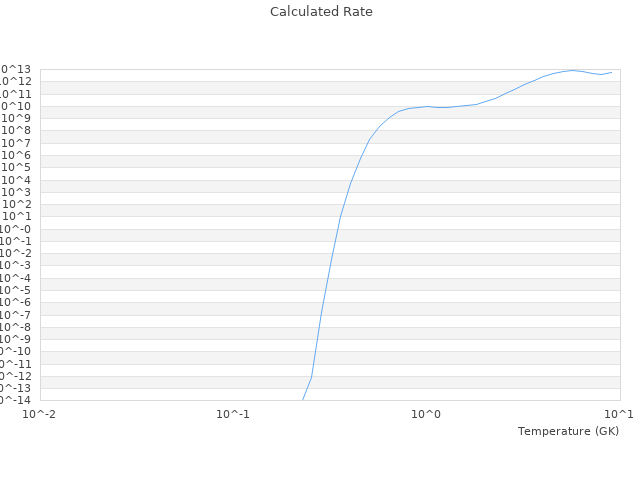

| View Graph | |
