Datapoints for v77 -> p + ti76
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 3.325349e-295 |
| 0.5 | 9.395676e-235 |
| 0.6 | 2.752948e-194 |
| 0.7 | 2.842049e-165 |
| 0.8 | 1.943994e-143 |
| 0.9 | 2.111881e-126 |
| 1 | 9.828341e-113 |
| 1.5 | 1.832195e-71 |
| 2 | 1.285920e-50 |
| 2.5 | 5.345124e-38 |
| 3 | 1.642393e-29 |
| 3.5 | 2.165516e-23 |
| 4 | 9.376488e-19 |
| 4.5 | 4.129663e-15 |
| 5 | 3.640718e-12 |
| 6 | 1.093001e-07 |
| 7 | 1.889986e-04 |
| 8 | 5.055099e-02 |
| 9 | 3.579094e+00 |
| 10 | 9.185241e+01 |

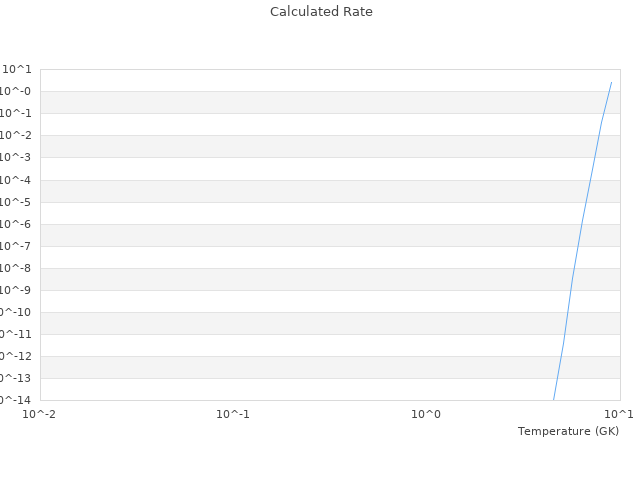

| View Graph | |
