Datapoints for p + ti76 -> v77
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.571592e-20 |
| 0.15 | 2.072707e-16 |
| 0.2 | 4.393869e-14 |
| 0.3 | 3.053537e-11 |
| 0.4 | 2.044986e-09 |
| 0.5 | 4.375965e-08 |
| 0.6 | 4.701941e-07 |
| 0.7 | 3.178294e-06 |
| 0.8 | 1.540449e-05 |
| 0.9 | 5.819069e-05 |
| 1 | 1.812994e-04 |
| 1.5 | 8.868625e-03 |
| 2 | 8.876523e-02 |
| 2.5 | 4.232074e-01 |
| 3 | 1.354945e+00 |
| 3.5 | 3.426783e+00 |
| 4 | 7.444800e+00 |
| 4.5 | 1.454088e+01 |
| 5 | 2.618790e+01 |
| 6 | 6.999593e+01 |
| 7 | 1.493280e+02 |
| 8 | 2.559540e+02 |
| 9 | 3.493596e+02 |
| 10 | 3.744473e+02 |

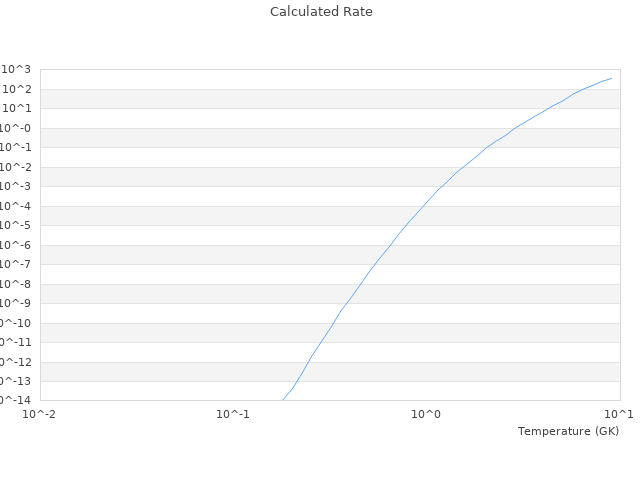

| View Graph | |
