Datapoints for p + ti76 -> n + v76
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.844012e-15 |
| 0.15 | 2.429180e-11 |
| 0.2 | 5.147990e-09 |
| 0.3 | 3.585932e-06 |
| 0.4 | 2.411892e-04 |
| 0.5 | 5.185921e-03 |
| 0.6 | 5.597853e-02 |
| 0.7 | 3.799258e-01 |
| 0.8 | 1.847662e+00 |
| 0.9 | 6.998301e+00 |
| 1 | 2.184720e+01 |
| 1.5 | 1.069558e+03 |
| 2 | 1.059654e+04 |
| 2.5 | 4.969403e+04 |
| 3 | 1.560193e+05 |
| 3.5 | 3.866422e+05 |
| 4 | 8.237640e+05 |
| 4.5 | 1.581029e+06 |
| 5 | 2.806100e+06 |
| 6 | 7.366147e+06 |
| 7 | 1.571147e+07 |
| 8 | 2.747278e+07 |
| 9 | 3.909164e+07 |
| 10 | 4.467861e+07 |

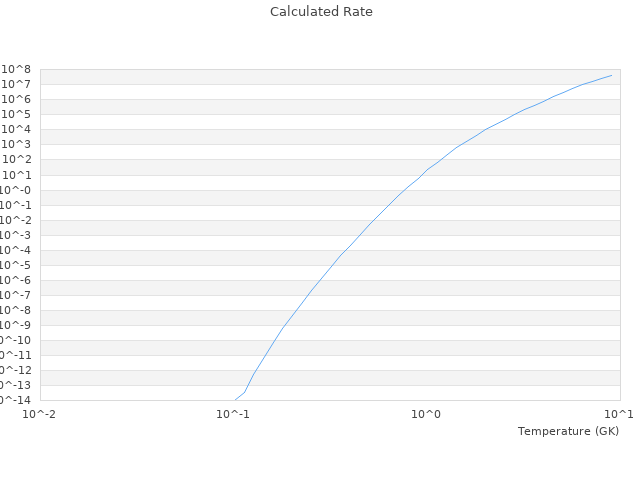

| View Graph | |
