Datapoints for p + ti36 -> n + v36
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | 0.000000e+00 |
| 0.5 | 4.861336e-291 |
| 0.6 | 5.363720e-241 |
| 0.7 | 2.975525e-205 |
| 0.8 | 1.910939e-178 |
| 0.9 | 1.353556e-157 |
| 1 | 6.480387e-141 |
| 1.5 | 7.131452e-91 |
| 2 | 7.543144e-66 |
| 2.5 | 7.873951e-51 |
| 3 | 8.172012e-41 |
| 3.5 | 1.174780e-33 |
| 4 | 2.760308e-28 |
| 4.5 | 4.176013e-24 |
| 5 | 9.259672e-21 |
| 6 | 9.767893e-16 |
| 7 | 3.820158e-12 |
| 8 | 1.901684e-09 |
| 9 | 2.390950e-07 |
| 10 | 1.145354e-05 |

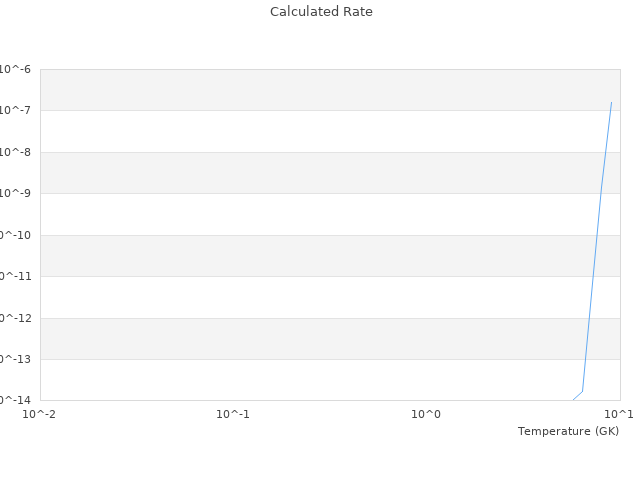

| View Graph | |
