Datapoints for p + ti43 -> n + v43
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-322 |
| 0.3 | 9.189875e-212 |
| 0.4 | 9.333768e-157 |
| 0.5 | 9.371141e-124 |
| 0.6 | 9.364778e-102 |
| 0.7 | 4.838219e-86 |
| 0.8 | 2.944826e-74 |
| 0.9 | 4.309366e-65 |
| 1 | 9.259610e-58 |
| 1.5 | 9.212584e-36 |
| 2 | 9.280945e-25 |
| 2.5 | 3.754513e-18 |
| 3 | 9.636572e-14 |
| 3.5 | 1.372889e-10 |
| 4 | 3.209885e-08 |
| 4.5 | 2.248774e-06 |
| 5 | 6.773739e-05 |
| 6 | 1.134121e-02 |
| 7 | 4.447770e-01 |
| 8 | 7.018450e+00 |
| 9 | 6.017909e+01 |
| 10 | 3.357641e+02 |

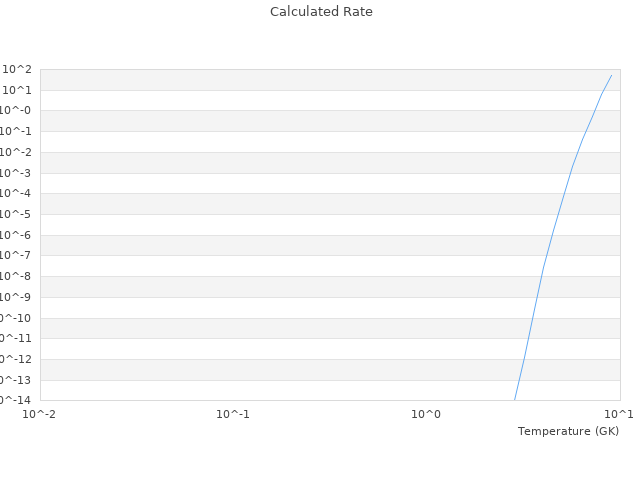

| View Graph | |
