Datapoints for mn51 -> he4 + v47
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 6.196148e-260 |
| 0.3 | 1.124280e-170 |
| 0.4 | 2.526817e-126 |
| 0.5 | 6.620104e-100 |
| 0.6 | 2.253761e-82 |
| 0.7 | 7.341326e-70 |
| 0.8 | 1.900786e-60 |
| 0.9 | 4.449171e-53 |
| 1 | 3.983600e-47 |
| 1.5 | 1.377910e-28 |
| 2 | 1.697047e-18 |
| 2.5 | 5.937879e-12 |
| 3 | 2.448575e-07 |
| 3.5 | 6.197506e-04 |
| 4 | 2.331780e-01 |
| 4.5 | 2.240336e+01 |
| 5 | 7.906658e+02 |
| 6 | 1.302762e+05 |
| 7 | 4.414886e+06 |
| 8 | 7.743137e+07 |
| 9 | 1.335474e+09 |
| 10 | 3.626339e+10 |

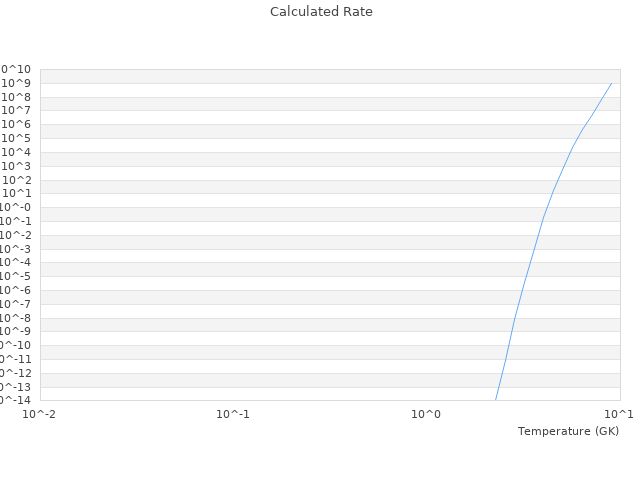

| View Graph | |
