Datapoints for p + v50 -> he4 + ti47
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.408019e-47 |
| 0.15 | 3.953244e-36 |
| 0.2 | 5.284745e-30 |
| 0.3 | 3.708659e-23 |
| 0.4 | 2.959133e-19 |
| 0.5 | 1.265857e-16 |
| 0.6 | 1.148703e-14 |
| 0.7 | 4.093345e-13 |
| 0.8 | 7.873979e-12 |
| 0.9 | 9.806866e-11 |
| 1 | 8.846220e-10 |
| 1.5 | 2.842446e-06 |
| 2 | 6.146783e-04 |
| 2.5 | 3.045072e-02 |
| 3 | 5.803116e-01 |
| 3.5 | 5.653584e+00 |
| 4 | 3.371605e+01 |
| 4.5 | 1.394272e+02 |
| 5 | 4.380787e+02 |
| 6 | 2.470358e+03 |
| 7 | 9.044325e+03 |
| 8 | 2.809652e+04 |
| 9 | 8.940519e+04 |
| 10 | 3.344571e+05 |

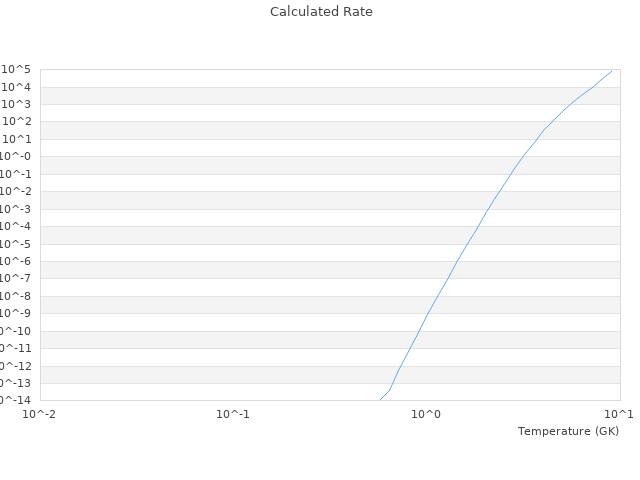

| View Graph | |
