Datapoints for he4 + ti76 -> p + v79
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.592251e-240 |
| 0.2 | 2.675734e-183 |
| 0.3 | 1.602888e-125 |
| 0.4 | 3.378947e-96 |
| 0.5 | 2.381404e-78 |
| 0.6 | 2.706773e-66 |
| 0.7 | 1.399561e-57 |
| 0.8 | 5.636460e-51 |
| 0.9 | 8.664618e-46 |
| 1 | 1.328646e-41 |
| 1.5 | 8.501533e-29 |
| 2 | 3.438282e-22 |
| 2.5 | 4.157047e-18 |
| 3 | 2.691809e-15 |
| 3.5 | 3.266420e-13 |
| 4 | 1.392884e-11 |
| 4.5 | 2.955803e-10 |
| 5 | 3.837238e-09 |
| 6 | 2.371909e-07 |
| 7 | 5.929288e-06 |
| 8 | 7.885745e-05 |
| 9 | 6.406844e-04 |
| 10 | 3.421019e-03 |

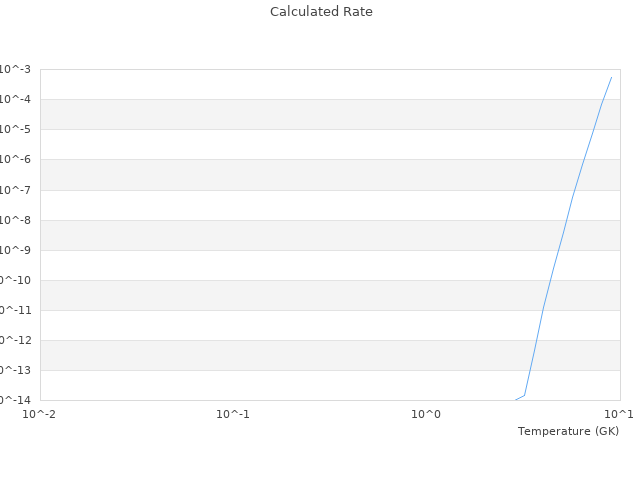

| View Graph | |
