Datapoints for he4 + ti44 -> n + cr47
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 2.188528e-283 |
| 0.2 | 8.514786e-211 |
| 0.3 | 3.249344e-138 |
| 0.4 | 6.259720e-102 |
| 0.5 | 3.665702e-80 |
| 0.6 | 1.185941e-65 |
| 0.7 | 2.736767e-55 |
| 0.8 | 1.618215e-47 |
| 0.9 | 1.792537e-41 |
| 1 | 1.227136e-36 |
| 1.5 | 3.945948e-22 |
| 2 | 7.134044e-15 |
| 2.5 | 1.627875e-10 |
| 3 | 1.320466e-07 |
| 3.5 | 1.591157e-05 |
| 4 | 5.821051e-04 |
| 4.5 | 9.616116e-03 |
| 5 | 9.101842e-02 |
| 6 | 2.673329e+00 |
| 7 | 3.012648e+01 |
| 8 | 1.861666e+02 |
| 9 | 7.692892e+02 |
| 10 | 2.394645e+03 |

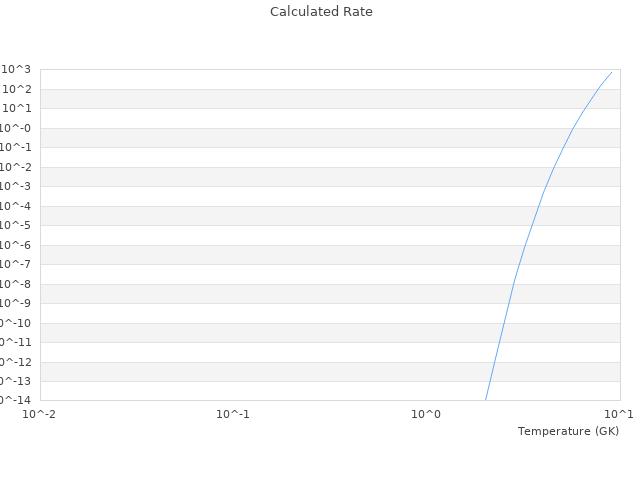

| View Graph | |
