Datapoints for cr77 -> n + cr76
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.099781e-20 |
| 0.15 | 3.440049e-05 |
| 0.2 | 7.754841e+01 |
| 0.3 | 4.839560e+06 |
| 0.4 | 1.756091e+08 |
| 0.5 | 7.075296e+08 |
| 0.6 | 1.316198e+09 |
| 0.7 | 1.837025e+09 |
| 0.8 | 2.317580e+09 |
| 0.9 | 2.849615e+09 |
| 1 | 3.518976e+09 |
| 1.5 | 1.259690e+10 |
| 2 | 5.225043e+10 |
| 2.5 | 1.920605e+11 |
| 3 | 5.656027e+11 |
| 3.5 | 1.314943e+12 |
| 4 | 2.462846e+12 |
| 4.5 | 3.840523e+12 |
| 5 | 5.168555e+12 |
| 6 | 6.901629e+12 |
| 7 | 7.498884e+12 |
| 8 | 8.085715e+12 |
| 9 | 1.012347e+13 |
| 10 | 1.666474e+13 |

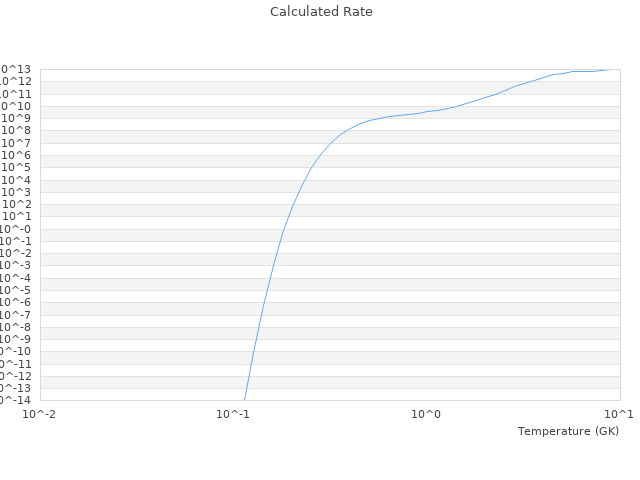

| View Graph | |
