Datapoints for he4 + mn44 -> p + fe47
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.875740e-101 |
| 0.15 | 2.725460e-69 |
| 0.2 | 1.557869e-52 |
| 0.3 | 1.184115e-35 |
| 0.4 | 1.696004e-27 |
| 0.5 | 8.434561e-23 |
| 0.6 | 9.446409e-20 |
| 0.7 | 1.390030e-17 |
| 0.8 | 6.279774e-16 |
| 0.9 | 1.361783e-14 |
| 1 | 1.822813e-13 |
| 1.5 | 2.177530e-09 |
| 2 | 1.641054e-06 |
| 2.5 | 2.767259e-04 |
| 3 | 1.533396e-02 |
| 3.5 | 3.477549e-01 |
| 4 | 3.827576e+00 |
| 4.5 | 2.364538e+01 |
| 5 | 9.308467e+01 |
| 6 | 5.752089e+02 |
| 7 | 1.893242e+03 |
| 8 | 5.901395e+03 |
| 9 | 2.736394e+04 |
| 10 | 2.700250e+05 |

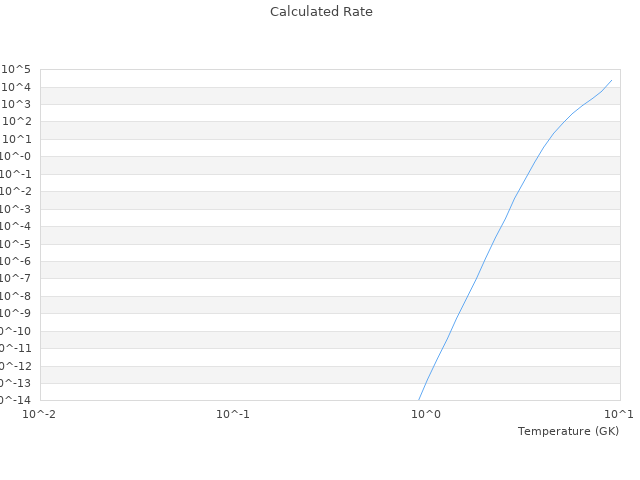

| View Graph | |
