Datapoints for p + mn45 -> fe46
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.704610e-19 |
| 0.15 | 1.876423e-14 |
| 0.2 | 7.281278e-12 |
| 0.3 | 9.209650e-09 |
| 0.4 | 7.327845e-07 |
| 0.5 | 1.518863e-05 |
| 0.6 | 1.423093e-04 |
| 0.7 | 7.931407e-04 |
| 0.8 | 3.077244e-03 |
| 0.9 | 9.171025e-03 |
| 1 | 2.241679e-02 |
| 1.5 | 3.416858e-01 |
| 2 | 1.269548e+00 |
| 2.5 | 2.681912e+00 |
| 3 | 4.403383e+00 |
| 3.5 | 6.415583e+00 |
| 4 | 8.801473e+00 |
| 4.5 | 1.166970e+01 |
| 5 | 1.510226e+01 |
| 6 | 2.358509e+01 |
| 7 | 3.271537e+01 |
| 8 | 3.859244e+01 |
| 9 | 3.704026e+01 |
| 10 | 2.779731e+01 |

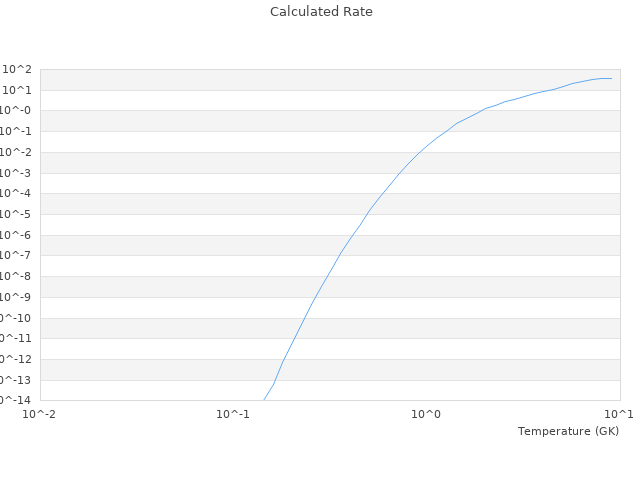

| View Graph | |
