Datapoints for p + mn76 -> fe77
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.332609e-22 |
| 0.15 | 7.233283e-18 |
| 0.2 | 2.487623e-15 |
| 0.3 | 3.120368e-12 |
| 0.4 | 3.048028e-10 |
| 0.5 | 8.570310e-09 |
| 0.6 | 1.136028e-07 |
| 0.7 | 9.079592e-07 |
| 0.8 | 5.047454e-06 |
| 0.9 | 2.137745e-05 |
| 1 | 7.337757e-05 |
| 1.5 | 4.954792e-03 |
| 2 | 5.944447e-02 |
| 2.5 | 3.187670e-01 |
| 3 | 1.111354e+00 |
| 3.5 | 3.007311e+00 |
| 4 | 6.920264e+00 |
| 4.5 | 1.422995e+01 |
| 5 | 2.687651e+01 |
| 6 | 7.841565e+01 |
| 7 | 1.812180e+02 |
| 8 | 3.338946e+02 |
| 9 | 4.854882e+02 |
| 10 | 5.483689e+02 |

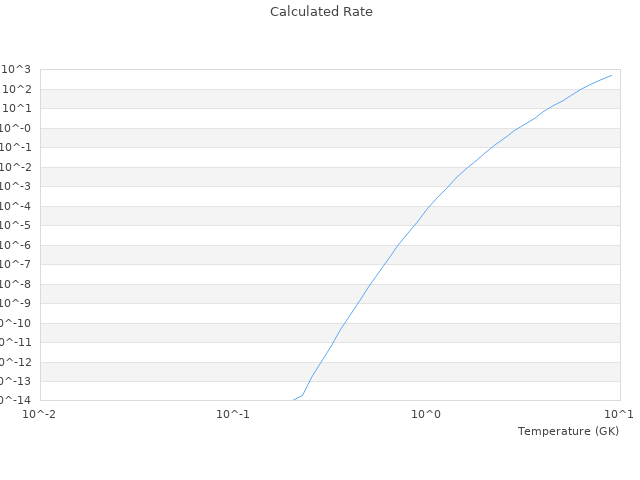

| View Graph | |
