Datapoints for p + fe72 -> he4 + mn69
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.976504e-83 |
| 0.15 | 4.605328e-60 |
| 0.2 | 1.764413e-47 |
| 0.3 | 1.474358e-34 |
| 0.4 | 4.046413e-28 |
| 0.5 | 2.727247e-24 |
| 0.6 | 9.987248e-22 |
| 0.7 | 7.459254e-20 |
| 0.8 | 2.163879e-18 |
| 0.9 | 3.438546e-17 |
| 1 | 3.642998e-16 |
| 1.5 | 2.101372e-12 |
| 2 | 9.739856e-10 |
| 2.5 | 1.162634e-07 |
| 3 | 5.254122e-06 |
| 3.5 | 1.112194e-04 |
| 4 | 1.285657e-03 |
| 4.5 | 9.180037e-03 |
| 5 | 4.489123e-02 |
| 6 | 4.845220e-01 |
| 7 | 2.861334e+00 |
| 8 | 1.426943e+01 |
| 9 | 8.409978e+01 |
| 10 | 7.630630e+02 |

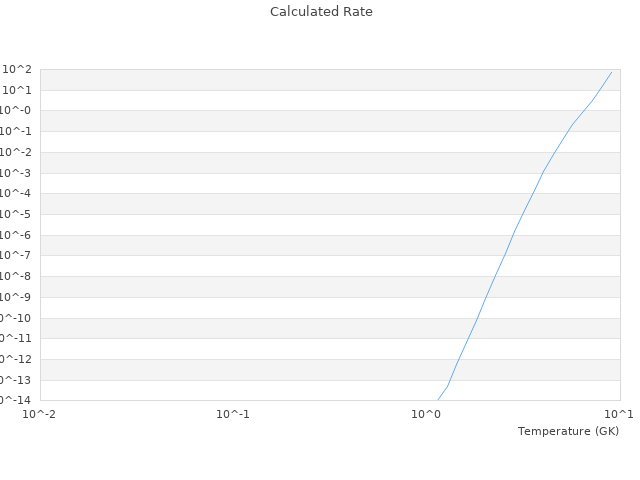

| View Graph | |
