Datapoints for he4 + mn73 -> p + fe76
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.641834e-106 |
| 0.15 | 1.826212e-78 |
| 0.2 | 4.840965e-63 |
| 0.3 | 1.341720e-46 |
| 0.4 | 5.596471e-38 |
| 0.5 | 1.193209e-32 |
| 0.6 | 5.381284e-29 |
| 0.7 | 2.661522e-26 |
| 0.8 | 3.319290e-24 |
| 0.9 | 1.658295e-22 |
| 1 | 4.374029e-21 |
| 1.5 | 3.238604e-16 |
| 2 | 4.098377e-13 |
| 2.5 | 7.694980e-11 |
| 3 | 4.477024e-09 |
| 3.5 | 1.147450e-07 |
| 4 | 1.596164e-06 |
| 4.5 | 1.388940e-05 |
| 5 | 8.399183e-05 |
| 6 | 1.410202e-03 |
| 7 | 1.238826e-02 |
| 8 | 8.076748e-02 |
| 9 | 5.068801e-01 |
| 10 | 3.739455e+00 |

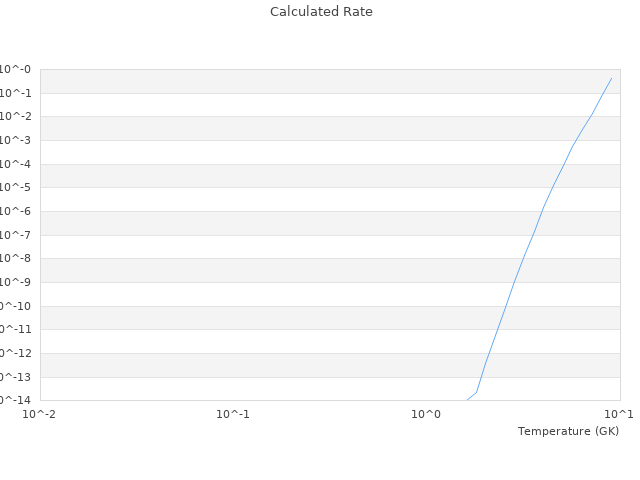

| View Graph | |
