Datapoints for p + fe86 -> he4 + mn83
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.362942e-46 |
| 0.15 | 5.686016e-35 |
| 0.2 | 1.916944e-29 |
| 0.3 | 6.942056e-24 |
| 0.4 | 4.929877e-21 |
| 0.5 | 3.236900e-19 |
| 0.6 | 6.842840e-18 |
| 0.7 | 7.750731e-17 |
| 0.8 | 5.983954e-16 |
| 0.9 | 3.572877e-15 |
| 1 | 1.772637e-14 |
| 1.5 | 9.941526e-12 |
| 2 | 1.039160e-09 |
| 2.5 | 3.727139e-08 |
| 3 | 6.143067e-07 |
| 3.5 | 5.637679e-06 |
| 4 | 3.320200e-05 |
| 4.5 | 1.401333e-04 |
| 5 | 4.630430e-04 |
| 6 | 3.196891e-03 |
| 7 | 1.701593e-02 |
| 8 | 9.568894e-02 |
| 9 | 7.166971e-01 |
| 10 | 8.513169e+00 |

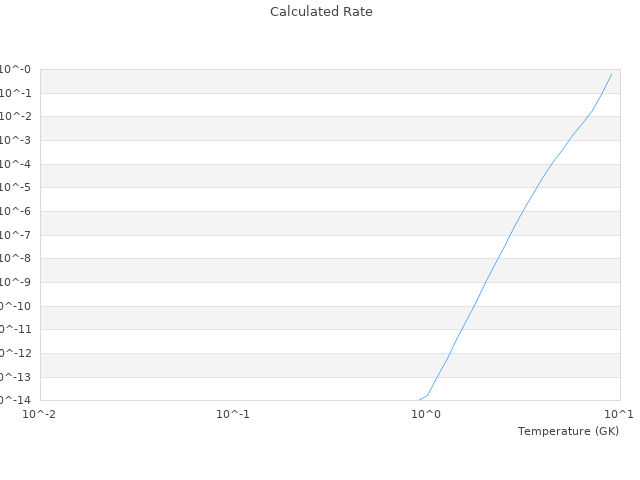

| View Graph | |
