Datapoints for p + ni69 -> he4 + co66
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.130781e-87 |
| 0.15 | 6.267081e-63 |
| 0.2 | 7.495330e-50 |
| 0.3 | 3.286581e-36 |
| 0.4 | 2.868388e-29 |
| 0.5 | 4.546990e-25 |
| 0.6 | 3.214015e-22 |
| 0.7 | 4.039518e-20 |
| 0.8 | 1.785603e-18 |
| 0.9 | 4.014498e-17 |
| 1 | 5.685152e-16 |
| 1.5 | 8.367916e-12 |
| 2 | 6.425734e-09 |
| 2.5 | 1.056233e-06 |
| 3 | 5.999446e-05 |
| 3.5 | 1.517534e-03 |
| 4 | 2.031086e-02 |
| 4.5 | 1.641659e-01 |
| 5 | 8.920015e-01 |
| 6 | 1.129203e+01 |
| 7 | 7.285973e+01 |
| 8 | 3.668578e+02 |
| 9 | 1.998717e+03 |
| 10 | 1.521677e+04 |

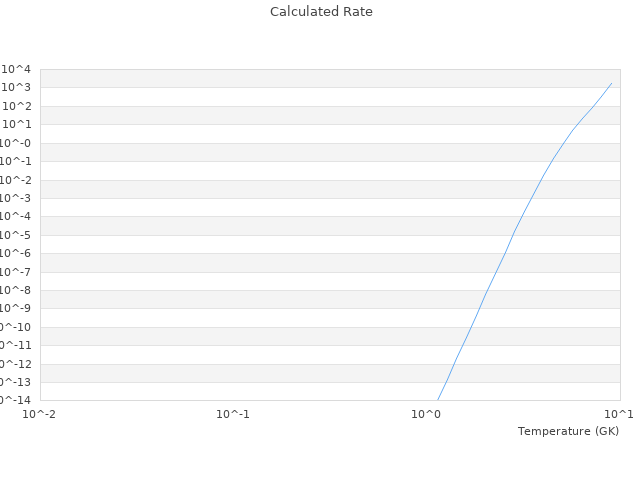

| View Graph | |
