Datapoints for p + cu80 -> he4 + ni77
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.501616e-27 |
| 0.15 | 1.629194e-22 |
| 0.2 | 1.201637e-19 |
| 0.3 | 4.164974e-16 |
| 0.4 | 8.263103e-14 |
| 0.5 | 4.005730e-12 |
| 0.6 | 8.240222e-11 |
| 0.7 | 9.492540e-10 |
| 0.8 | 7.200865e-09 |
| 0.9 | 3.990479e-08 |
| 1 | 1.733910e-07 |
| 1.5 | 2.774641e-05 |
| 2 | 5.918009e-04 |
| 2.5 | 4.920742e-03 |
| 3 | 2.474057e-02 |
| 3.5 | 9.268212e-02 |
| 4 | 2.883150e-01 |
| 4.5 | 7.902430e-01 |
| 5 | 1.972957e+00 |
| 6 | 9.931825e+00 |
| 7 | 3.932473e+01 |
| 8 | 1.238136e+02 |
| 9 | 3.069516e+02 |
| 10 | 5.891051e+02 |

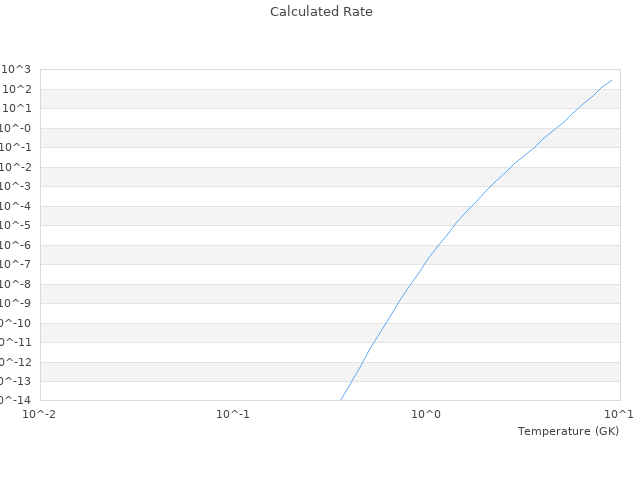

| View Graph | |
