Datapoints for rb113 -> he4 + br109
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | INFe-317 |
| 0.4 | 6.438170e-235 |
| 0.5 | 3.917993e-186 |
| 0.6 | 6.435383e-154 |
| 0.7 | 4.257266e-131 |
| 0.8 | 4.328697e-114 |
| 0.9 | 6.459236e-101 |
| 1 | 2.137979e-90 |
| 1.5 | 1.256748e-58 |
| 2 | 3.685712e-42 |
| 2.5 | 8.877194e-32 |
| 3 | 1.583451e-24 |
| 3.5 | 3.708600e-19 |
| 4 | 4.889068e-15 |
| 4.5 | 8.397338e-12 |
| 5 | 3.204364e-09 |
| 6 | 2.000042e-05 |
| 7 | 8.169775e-03 |
| 8 | 7.037021e-01 |
| 9 | 2.820043e+01 |
| 10 | 9.324300e+02 |

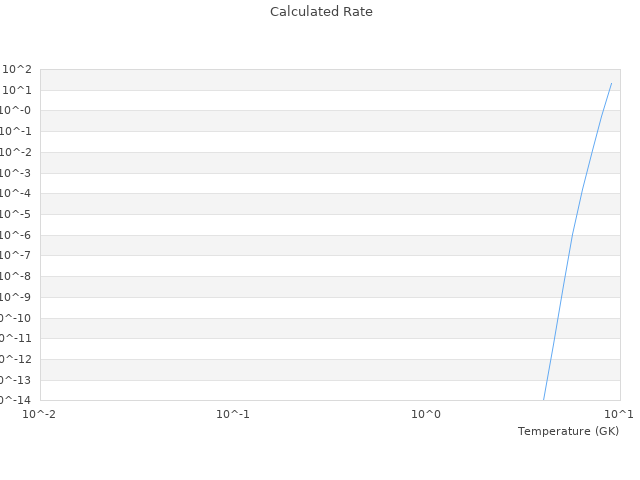

| View Graph | |
