Datapoints for y77 -> p + sr76
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.506840e-06 |
| 0.15 | 6.418061e-04 |
| 0.2 | 1.511574e-02 |
| 0.3 | 1.915032e+00 |
| 0.4 | 8.984957e+01 |
| 0.5 | 2.055026e+03 |
| 0.6 | 2.674668e+04 |
| 0.7 | 2.230606e+05 |
| 0.8 | 1.306677e+06 |
| 0.9 | 5.771091e+06 |
| 1 | 2.029882e+07 |
| 1.5 | 1.211736e+09 |
| 2 | 1.038512e+10 |
| 2.5 | 3.876275e+10 |
| 3 | 9.918568e+10 |
| 3.5 | 2.127154e+11 |
| 4 | 4.185594e+11 |
| 4.5 | 7.849476e+11 |
| 5 | 1.419736e+12 |
| 6 | 4.114355e+12 |
| 7 | 9.465810e+12 |
| 8 | 1.561283e+13 |
| 9 | 1.671282e+13 |
| 10 | 1.062881e+13 |

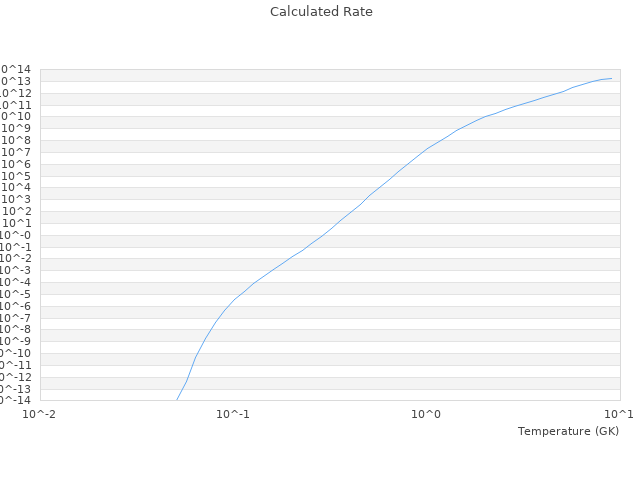

| View Graph | |
