Datapoints for zr89 -> he4 + sr85
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | INFe-321 |
| 0.2 | 2.638722e-238 |
| 0.3 | 1.220062e-154 |
| 0.4 | 4.253773e-113 |
| 0.5 | 1.475181e-88 |
| 0.6 | 1.882871e-72 |
| 0.7 | 4.333691e-61 |
| 0.8 | 1.232362e-52 |
| 0.9 | 4.416185e-46 |
| 1 | 7.869152e-41 |
| 1.5 | 1.133001e-24 |
| 2 | 7.055037e-16 |
| 2.5 | 4.447781e-10 |
| 3 | 6.640285e-06 |
| 3.5 | 9.041796e-03 |
| 4 | 2.294604e+00 |
| 4.5 | 1.687669e+02 |
| 5 | 4.875292e+03 |
| 6 | 5.784909e+05 |
| 7 | 1.409092e+07 |
| 8 | 1.710837e+08 |
| 9 | 1.984302e+09 |
| 10 | 3.616075e+10 |

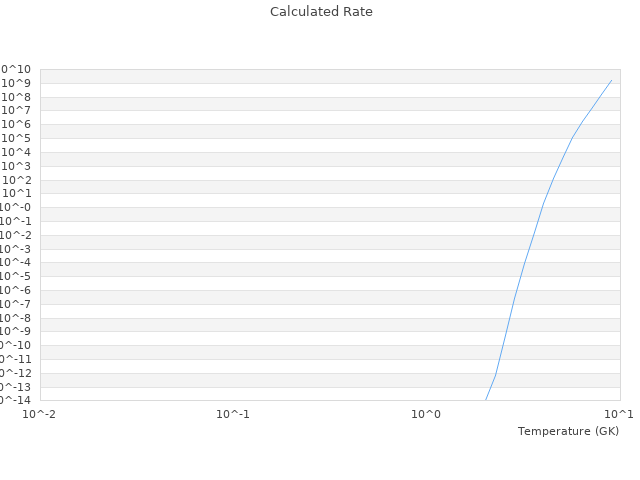

| View Graph | |
