Datapoints for zr92 -> he4 + sr88
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-320 |
| 0.15 | 4.559128e-213 |
| 0.2 | 5.664616e-157 |
| 0.3 | 3.710960e-100 |
| 0.4 | 3.836559e-72 |
| 0.5 | 9.166870e-56 |
| 0.6 | 4.065207e-45 |
| 0.7 | 1.165662e-37 |
| 0.8 | 3.916157e-32 |
| 0.9 | 7.476013e-28 |
| 1 | 2.043156e-24 |
| 1.5 | 1.195157e-13 |
| 2 | 1.668769e-07 |
| 2.5 | 2.747819e-03 |
| 3 | 3.466504e+00 |
| 3.5 | 7.537914e+02 |
| 4 | 4.455562e+04 |
| 4.5 | 9.711092e+05 |
| 5 | 9.797868e+06 |
| 6 | 1.977328e+08 |
| 7 | 1.120983e+09 |
| 8 | 4.057886e+09 |
| 9 | 1.760525e+10 |
| 10 | 1.502245e+11 |

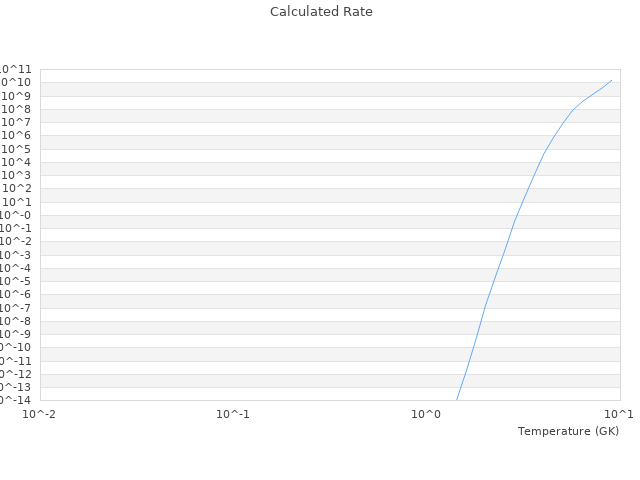

| View Graph | |
