Datapoints for zr103 -> he4 + sr99
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-309 |
| 0.3 | 2.067032e-202 |
| 0.4 | 4.194317e-149 |
| 0.5 | 1.653950e-117 |
| 0.6 | 9.970027e-97 |
| 0.7 | 4.635120e-82 |
| 0.8 | 3.701602e-71 |
| 0.9 | 1.002232e-62 |
| 1 | 5.406011e-56 |
| 1.5 | 1.485616e-35 |
| 2 | 9.945733e-25 |
| 2.5 | 1.007837e-17 |
| 3 | 1.017942e-12 |
| 3.5 | 5.941349e-09 |
| 4 | 4.920420e-06 |
| 4.5 | 9.828168e-04 |
| 5 | 6.711525e-02 |
| 6 | 3.179824e+01 |
| 7 | 2.070898e+03 |
| 8 | 4.537336e+04 |
| 9 | 6.336545e+05 |
| 10 | 9.130850e+06 |

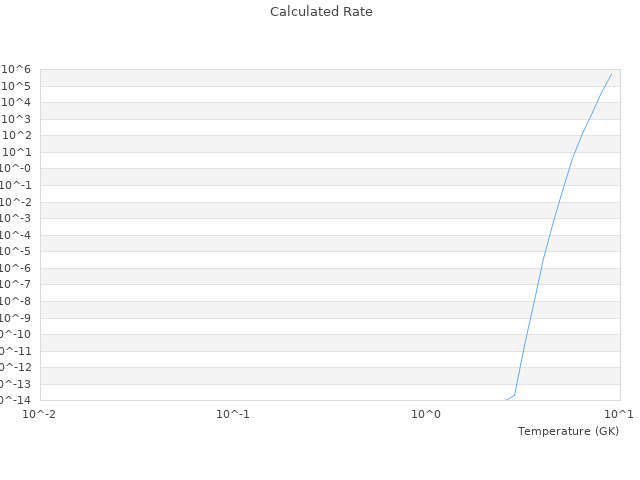

| View Graph | |
