Datapoints for p + sr109 -> n + y109
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.461484e-26 |
| 0.15 | 1.668554e-20 |
| 0.2 | 3.930429e-17 |
| 0.3 | 5.121268e-13 |
| 0.4 | 2.339736e-10 |
| 0.5 | 2.080835e-08 |
| 0.6 | 6.832353e-07 |
| 0.7 | 1.140988e-05 |
| 0.8 | 1.168861e-04 |
| 0.9 | 8.285811e-04 |
| 1 | 4.413582e-03 |
| 1.5 | 1.308613e+00 |
| 2 | 3.627478e+01 |
| 2.5 | 3.343705e+02 |
| 3 | 1.721302e+03 |
| 3.5 | 6.322114e+03 |
| 4 | 1.878362e+04 |
| 4.5 | 4.828960e+04 |
| 5 | 1.114351e+05 |
| 6 | 4.598376e+05 |
| 7 | 1.405081e+06 |
| 8 | 3.178391e+06 |
| 9 | 5.206827e+06 |
| 10 | 6.004986e+06 |

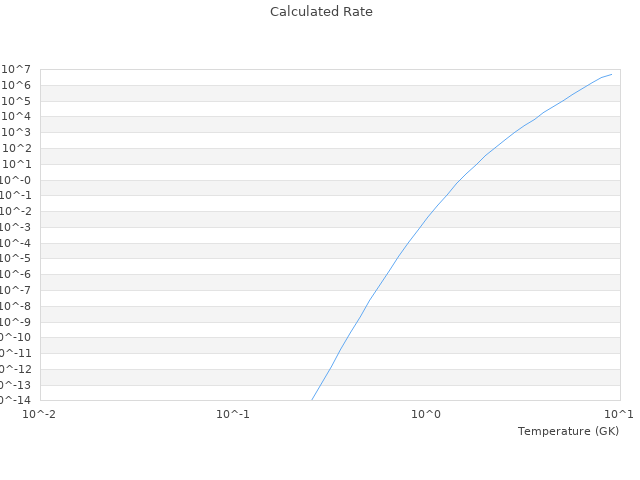

| View Graph | |
