Datapoints for p + sr116 -> he4 + rb113
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.309982e-115 |
| 0.15 | 1.413564e-77 |
| 0.2 | 2.892119e-58 |
| 0.3 | 6.611073e-40 |
| 0.4 | 7.801558e-32 |
| 0.5 | 1.246716e-27 |
| 0.6 | 3.742349e-25 |
| 0.7 | 1.575608e-23 |
| 0.8 | 2.349582e-22 |
| 0.9 | 1.971662e-21 |
| 1 | 1.189051e-20 |
| 1.5 | 1.498153e-17 |
| 2 | 6.618293e-15 |
| 2.5 | 1.409976e-12 |
| 3 | 1.362864e-10 |
| 3.5 | 6.019602e-09 |
| 4 | 1.301579e-07 |
| 4.5 | 1.521606e-06 |
| 5 | 1.073382e-05 |
| 6 | 1.810432e-04 |
| 7 | 1.393308e-03 |
| 8 | 9.638616e-03 |
| 9 | 1.046176e-01 |
| 10 | 2.807668e+00 |

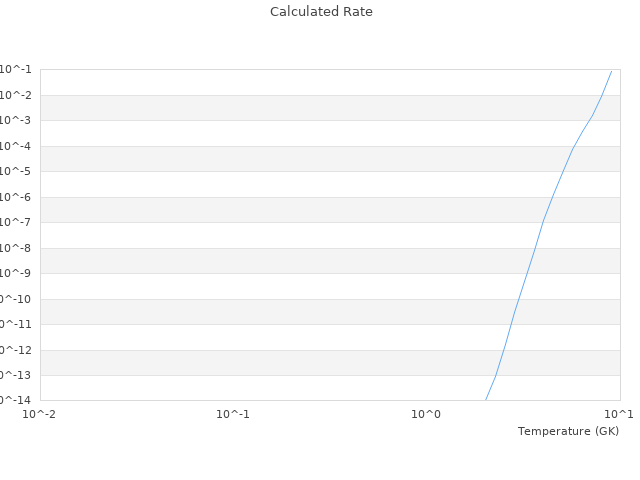

| View Graph | |
