Datapoints for p + zr87 -> he4 + y84
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.353014e-200 |
| 0.15 | 1.413529e-138 |
| 0.2 | 5.262526e-105 |
| 0.3 | 5.195286e-70 |
| 0.4 | 1.752143e-52 |
| 0.5 | 3.232929e-42 |
| 0.6 | 1.433611e-35 |
| 0.7 | 6.074168e-31 |
| 0.8 | 1.552015e-27 |
| 0.9 | 6.560817e-25 |
| 1 | 8.287898e-23 |
| 1.5 | 3.410879e-16 |
| 2 | 2.840152e-12 |
| 2.5 | 1.969741e-09 |
| 3 | 3.200194e-07 |
| 3.5 | 1.855387e-05 |
| 4 | 4.847631e-04 |
| 4.5 | 6.703262e-03 |
| 5 | 5.562428e-02 |
| 6 | 1.240437e+00 |
| 7 | 1.064269e+01 |
| 8 | 5.981167e+01 |
| 9 | 3.368325e+02 |
| 10 | 2.682425e+03 |

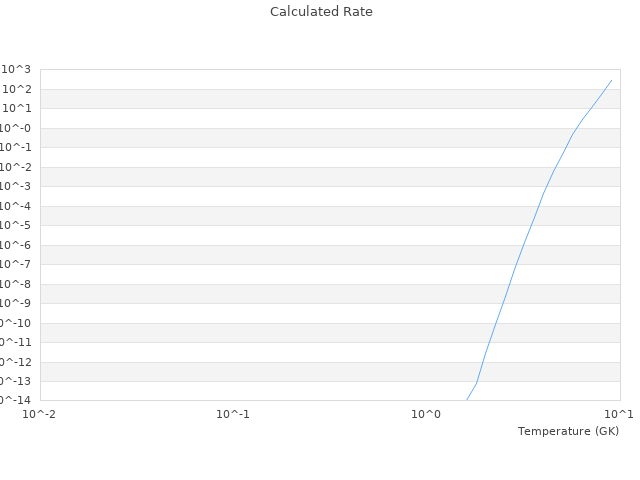

| View Graph | |
