Datapoints for nb109 -> he4 + y105
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-316 |
| 0.3 | 2.566110e-206 |
| 0.4 | 8.273379e-152 |
| 0.5 | 1.484869e-119 |
| 0.6 | 2.232523e-98 |
| 0.7 | 1.870615e-83 |
| 0.8 | 2.226991e-72 |
| 0.9 | 7.994182e-64 |
| 1 | 5.300512e-57 |
| 1.5 | 2.453615e-36 |
| 2 | 2.073068e-25 |
| 2.5 | 2.456421e-18 |
| 3 | 2.806913e-13 |
| 3.5 | 1.812445e-09 |
| 4 | 1.629278e-06 |
| 4.5 | 3.472319e-04 |
| 5 | 2.491186e-02 |
| 6 | 1.253043e+01 |
| 7 | 8.335590e+02 |
| 8 | 1.823440e+04 |
| 9 | 2.521832e+05 |
| 10 | 3.616466e+06 |

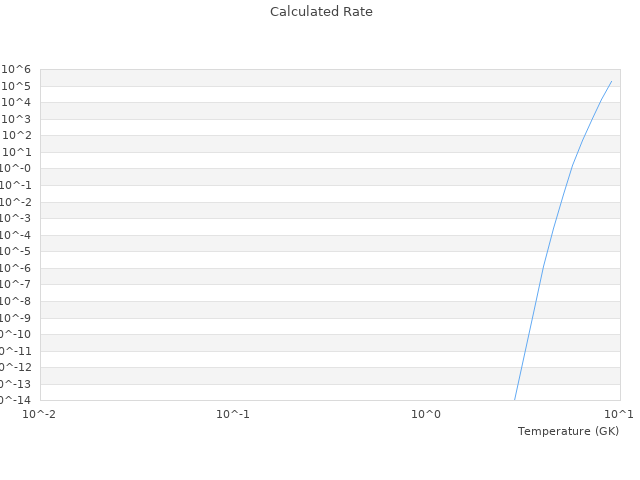

| View Graph | |
