Datapoints for zr109 -> p + y108
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 1.056637e-284 |
| 0.4 | 1.273786e-212 |
| 0.5 | 4.254383e-169 |
| 0.6 | 6.877287e-140 |
| 0.7 | 6.928799e-119 |
| 0.8 | 4.987455e-103 |
| 0.9 | 1.293372e-90 |
| 1 | 1.276003e-80 |
| 1.5 | 3.660859e-50 |
| 2 | 1.550134e-34 |
| 2.5 | 5.710014e-25 |
| 3 | 1.708114e-18 |
| 3.5 | 8.151660e-14 |
| 4 | 2.815805e-10 |
| 4.5 | 1.652136e-07 |
| 5 | 2.767844e-05 |
| 6 | 6.200550e-02 |
| 7 | 1.577934e+01 |
| 8 | 1.039763e+03 |
| 9 | 2.833491e+04 |
| 10 | 4.253348e+05 |

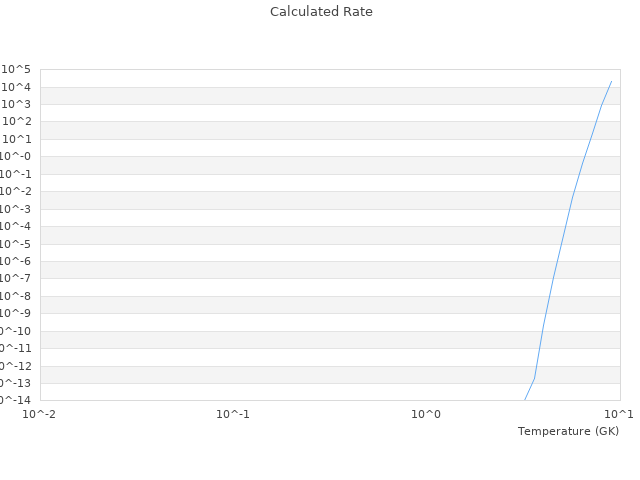

| View Graph | |
