Datapoints for nb117 -> he4 + y113
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 3.413259e-279 |
| 0.4 | 2.059095e-206 |
| 0.5 | 4.832224e-163 |
| 0.6 | 2.145242e-134 |
| 0.7 | 4.055217e-114 |
| 0.8 | 4.976905e-99 |
| 0.9 | 2.305855e-87 |
| 1 | 4.558897e-78 |
| 1.5 | 3.750773e-50 |
| 2 | 8.563808e-36 |
| 2.5 | 9.333552e-27 |
| 3 | 2.017411e-20 |
| 3.5 | 1.069663e-15 |
| 4 | 4.876802e-12 |
| 4.5 | 3.897859e-09 |
| 5 | 8.538303e-07 |
| 6 | 2.601862e-03 |
| 7 | 6.701677e-01 |
| 8 | 3.776696e+01 |
| 9 | 8.853945e+02 |
| 10 | 1.377094e+04 |

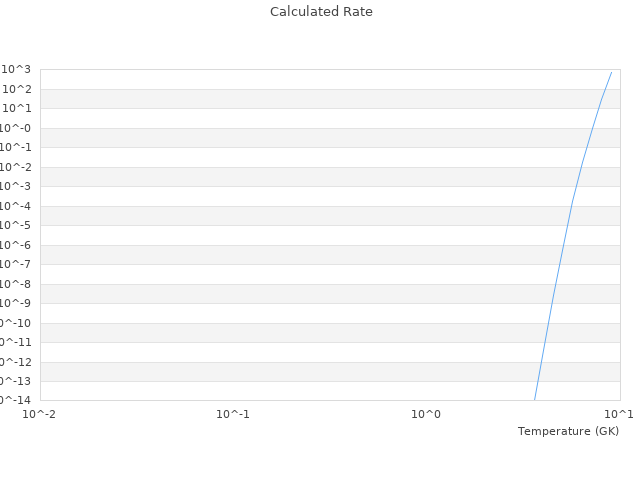

| View Graph | |
