Datapoints for p + y116 -> n + zr116
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.501952e-27 |
| 0.15 | 3.744562e-21 |
| 0.2 | 1.008366e-17 |
| 0.3 | 1.554662e-13 |
| 0.4 | 8.011058e-11 |
| 0.5 | 7.835725e-09 |
| 0.6 | 2.780481e-07 |
| 0.7 | 4.952144e-06 |
| 0.8 | 5.354915e-05 |
| 0.9 | 3.974061e-04 |
| 1 | 2.201524e-03 |
| 1.5 | 7.445437e-01 |
| 2 | 2.221414e+01 |
| 2.5 | 2.147852e+02 |
| 3 | 1.145672e+03 |
| 3.5 | 4.333608e+03 |
| 4 | 1.321813e+04 |
| 4.5 | 3.482104e+04 |
| 5 | 8.222892e+04 |
| 6 | 3.539505e+05 |
| 7 | 1.120719e+06 |
| 8 | 2.603153e+06 |
| 9 | 4.327906e+06 |
| 10 | 4.994785e+06 |

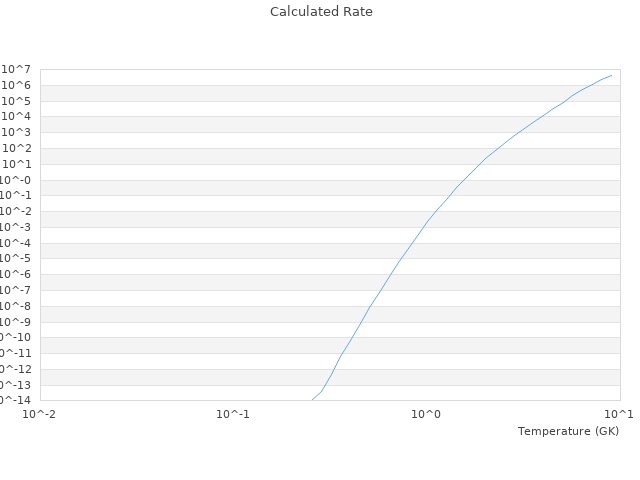

| View Graph | |
