Datapoints for zr131 -> p + y130
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 0.000000e+00 |
| 0.4 | INFe-311 |
| 0.5 | 2.347282e-248 |
| 0.6 | 4.412484e-206 |
| 0.7 | 9.487590e-176 |
| 0.8 | 6.740367e-153 |
| 0.9 | 4.791296e-135 |
| 1 | 1.055016e-120 |
| 1.5 | 3.277779e-77 |
| 2 | 4.513821e-55 |
| 2.5 | 1.354765e-41 |
| 3 | 1.669235e-32 |
| 3.5 | 5.989553e-26 |
| 4 | 5.383153e-21 |
| 4.5 | 4.050346e-17 |
| 5 | 5.296294e-14 |
| 6 | 2.657028e-09 |
| 7 | 6.321460e-06 |
| 8 | 2.209936e-03 |
| 9 | 2.144100e-01 |
| 10 | 8.487779e+00 |

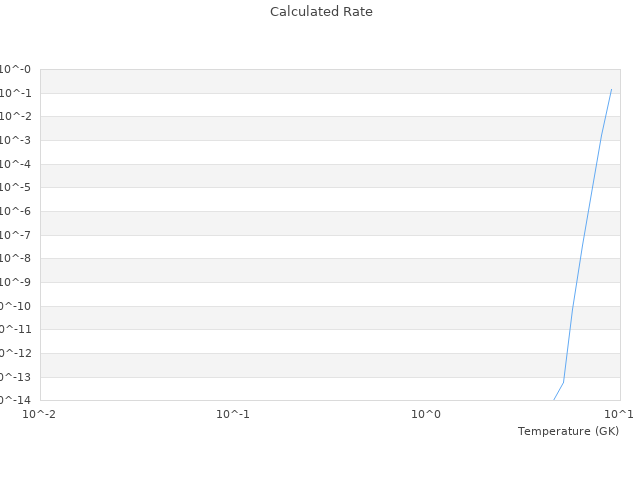

| View Graph | |
