Datapoints for he4 + sr77 -> n + zr80
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 4.256879e-264 |
| 0.2 | 2.299924e-197 |
| 0.3 | 1.347909e-130 |
| 0.4 | 3.498510e-97 |
| 0.5 | 4.099717e-77 |
| 0.6 | 1.015383e-63 |
| 0.7 | 3.843865e-54 |
| 0.8 | 5.985672e-47 |
| 0.9 | 2.389315e-41 |
| 1 | 7.330641e-37 |
| 1.5 | 2.387819e-23 |
| 2 | 1.554983e-16 |
| 2.5 | 2.097173e-12 |
| 3 | 1.284013e-09 |
| 3.5 | 1.343330e-07 |
| 4 | 4.664253e-06 |
| 4.5 | 7.776608e-05 |
| 5 | 7.773222e-04 |
| 6 | 2.811217e-02 |
| 7 | 4.301435e-01 |
| 8 | 3.890359e+00 |
| 9 | 2.504867e+01 |
| 10 | 1.283684e+02 |

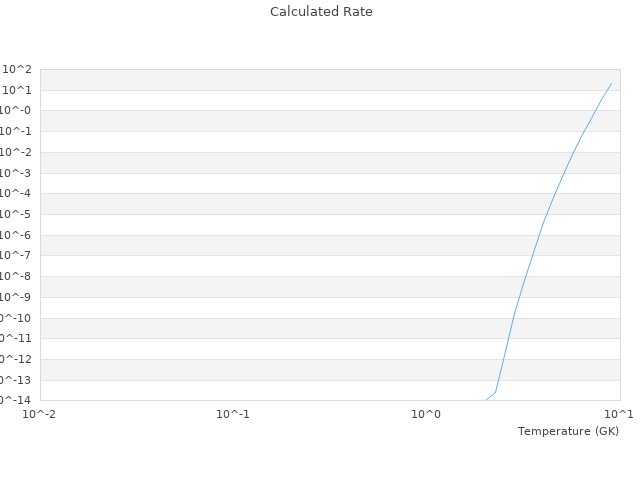

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
