Datapoints for nb92 -> p + zr91
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-314 |
| 0.15 | 9.660348e-210 |
| 0.2 | 5.910624e-157 |
| 0.3 | 2.625479e-103 |
| 0.4 | 8.306109e-76 |
| 0.5 | 6.465936e-59 |
| 0.6 | 2.041927e-47 |
| 0.7 | 4.747958e-39 |
| 0.8 | 1.129064e-32 |
| 0.9 | 1.206052e-27 |
| 1 | 1.422071e-23 |
| 1.5 | 4.582046e-11 |
| 2 | 1.236299e-04 |
| 2.5 | 1.016455e+00 |
| 3 | 4.390736e+02 |
| 3.5 | 3.483191e+04 |
| 4 | 9.559758e+05 |
| 4.5 | 1.290655e+07 |
| 5 | 1.056483e+08 |
| 6 | 2.538622e+09 |
| 7 | 2.393710e+10 |
| 8 | 1.158550e+11 |
| 9 | 3.277490e+11 |
| 10 | 5.778908e+11 |

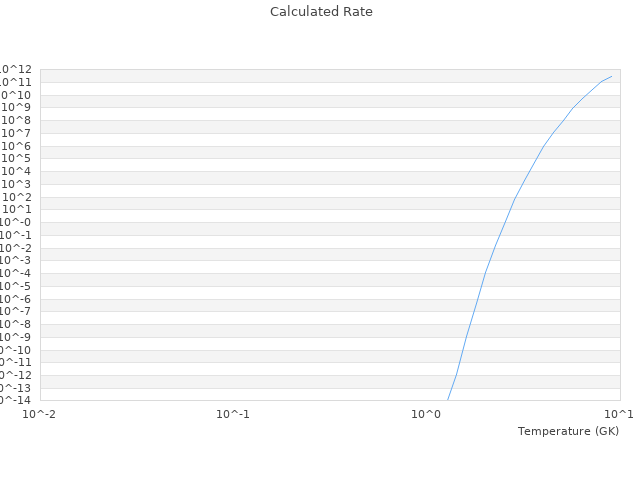

| View Graph | |
