Datapoints for p + zr96 -> he4 + y93
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.772772e-53 |
| 0.15 | 1.763062e-37 |
| 0.2 | 1.388835e-29 |
| 0.3 | 4.321156e-22 |
| 0.4 | 1.289486e-18 |
| 0.5 | 1.303926e-16 |
| 0.6 | 2.909097e-15 |
| 0.7 | 3.017758e-14 |
| 0.8 | 2.044004e-13 |
| 0.9 | 1.070939e-12 |
| 1 | 4.751409e-12 |
| 1.5 | 2.258775e-09 |
| 2 | 3.259717e-07 |
| 2.5 | 2.023019e-05 |
| 3 | 6.182107e-04 |
| 3.5 | 1.037317e-02 |
| 4 | 1.055101e-01 |
| 4.5 | 7.111806e-01 |
| 5 | 3.437852e+00 |
| 6 | 3.878351e+01 |
| 7 | 2.394982e+02 |
| 8 | 1.151052e+03 |
| 9 | 5.657117e+03 |
| 10 | 3.523282e+04 |

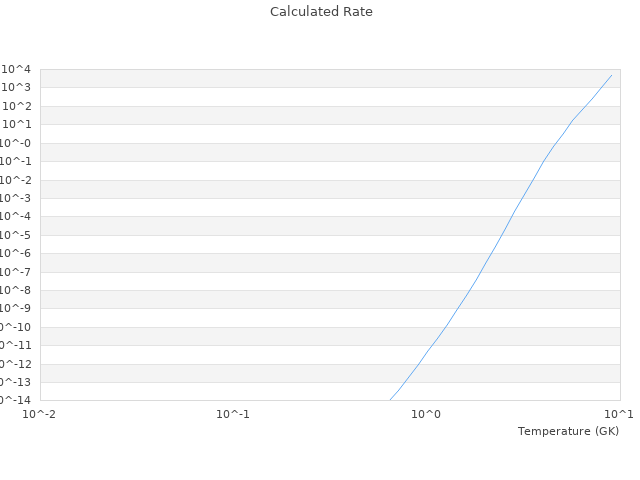

| View Graph | |
