Datapoints for p + zr109 -> he4 + y106
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.828514e-90 |
| 0.15 | 2.727623e-59 |
| 0.2 | 5.423084e-44 |
| 0.3 | 5.191574e-30 |
| 0.4 | 3.726867e-24 |
| 0.5 | 3.307501e-21 |
| 0.6 | 1.725464e-19 |
| 0.7 | 2.406851e-18 |
| 0.8 | 1.752302e-17 |
| 0.9 | 9.151434e-17 |
| 1 | 4.015462e-16 |
| 1.5 | 2.773416e-13 |
| 2 | 9.932449e-11 |
| 2.5 | 1.609111e-08 |
| 3 | 1.054026e-06 |
| 3.5 | 2.883194e-05 |
| 4 | 3.659713e-04 |
| 4.5 | 2.461585e-03 |
| 5 | 1.006538e-02 |
| 6 | 6.339848e-02 |
| 7 | 2.314836e-01 |
| 8 | 1.044612e+00 |
| 9 | 1.069025e+01 |
| 10 | 4.035626e+02 |

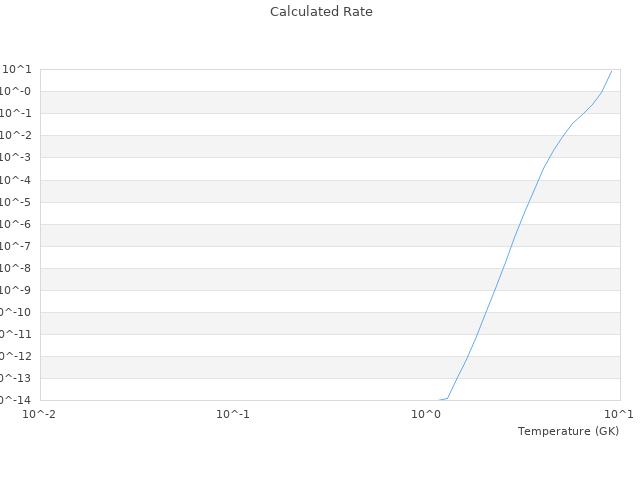

| View Graph | |
