Datapoints for zr114 -> n + zr113
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.156359e-204 |
| 0.15 | 2.274218e-131 |
| 0.2 | 1.105436e-94 |
| 0.3 | 5.862245e-58 |
| 0.4 | 1.401689e-39 |
| 0.5 | 1.507137e-28 |
| 0.6 | 3.413326e-21 |
| 0.7 | 6.113840e-16 |
| 0.8 | 5.314112e-12 |
| 0.9 | 6.144351e-09 |
| 1 | 1.731105e-06 |
| 1.5 | 3.841295e+01 |
| 2 | 1.808969e+05 |
| 2.5 | 2.902247e+07 |
| 3 | 8.567790e+08 |
| 3.5 | 9.552027e+09 |
| 4 | 5.748349e+10 |
| 4.5 | 2.273914e+11 |
| 5 | 6.648614e+11 |
| 6 | 3.010055e+12 |
| 7 | 7.537593e+12 |
| 8 | 1.237798e+13 |
| 9 | 1.463493e+13 |
| 10 | 1.317002e+13 |

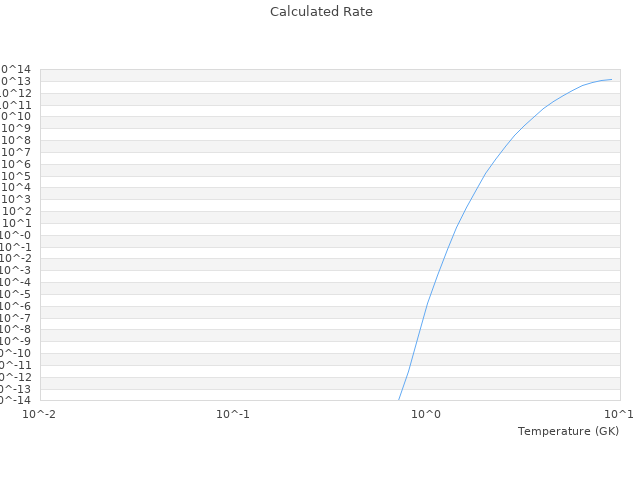

| View Graph | |
