Datapoints for p + zr130 -> he4 + y127
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.259922e-94 |
| 0.15 | 6.255834e-62 |
| 0.2 | 7.958498e-46 |
| 0.3 | 2.610580e-31 |
| 0.4 | 2.059833e-25 |
| 0.5 | 1.419931e-22 |
| 0.6 | 5.179189e-21 |
| 0.7 | 4.962765e-20 |
| 0.8 | 2.522251e-19 |
| 0.9 | 9.462495e-19 |
| 1 | 3.080168e-18 |
| 1.5 | 7.369107e-16 |
| 2 | 1.511605e-13 |
| 2.5 | 1.862099e-11 |
| 3 | 1.089186e-09 |
| 3.5 | 2.918227e-08 |
| 4 | 3.826068e-07 |
| 4.5 | 2.738290e-06 |
| 5 | 1.210000e-05 |
| 6 | 9.037039e-05 |
| 7 | 3.894527e-04 |
| 8 | 2.043116e-03 |
| 9 | 2.394121e-02 |
| 10 | 1.023911e+00 |

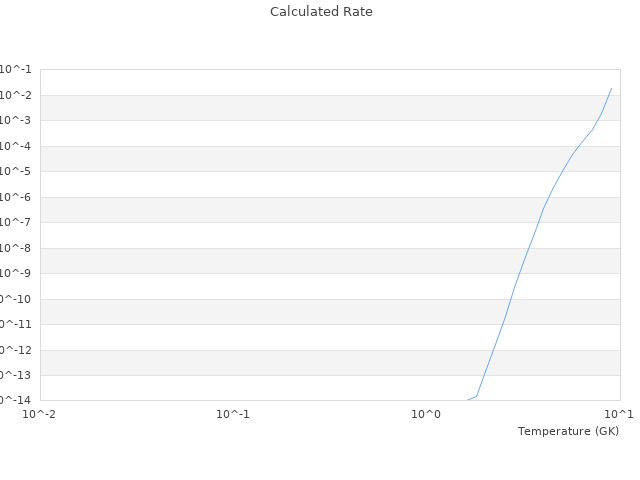

| View Graph | |
