Datapoints for n + nb77 -> he4 + y74
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.342728e+05 |
| 0.15 | 2.920610e+05 |
| 0.2 | 3.446618e+05 |
| 0.3 | 4.379817e+05 |
| 0.4 | 5.159627e+05 |
| 0.5 | 5.800874e+05 |
| 0.6 | 6.324888e+05 |
| 0.7 | 6.753194e+05 |
| 0.8 | 7.104949e+05 |
| 0.9 | 7.396296e+05 |
| 1 | 7.640481e+05 |
| 1.5 | 8.463742e+05 |
| 2 | 9.070513e+05 |
| 2.5 | 9.741565e+05 |
| 3 | 1.059270e+06 |
| 3.5 | 1.168998e+06 |
| 4 | 1.308856e+06 |
| 4.5 | 1.484750e+06 |
| 5 | 1.703643e+06 |
| 6 | 2.305955e+06 |
| 7 | 3.206737e+06 |
| 8 | 4.536278e+06 |
| 9 | 6.475902e+06 |
| 10 | 9.270374e+06 |

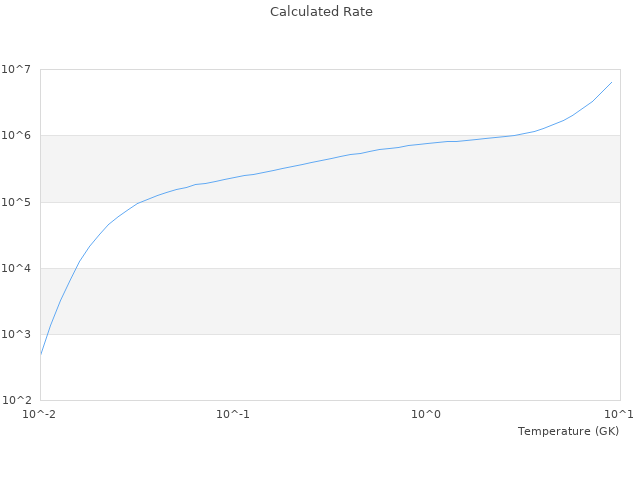

| View Graph | |
