Datapoints for p + nb117 -> he4 + zr114
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.238648e-91 |
| 0.15 | 1.534508e-59 |
| 0.2 | 1.038740e-43 |
| 0.3 | 2.158213e-29 |
| 0.4 | 1.576360e-23 |
| 0.5 | 1.134696e-20 |
| 0.6 | 4.491704e-19 |
| 0.7 | 4.707947e-18 |
| 0.8 | 2.605627e-17 |
| 0.9 | 1.054564e-16 |
| 1 | 3.662670e-16 |
| 1.5 | 1.038289e-13 |
| 2 | 2.098302e-11 |
| 2.5 | 2.297009e-09 |
| 3 | 1.131923e-07 |
| 3.5 | 2.496080e-06 |
| 4 | 2.681298e-05 |
| 4.5 | 1.584316e-04 |
| 5 | 5.871705e-04 |
| 6 | 3.301210e-03 |
| 7 | 1.196164e-02 |
| 8 | 5.971454e-02 |
| 9 | 7.583525e-01 |
| 10 | 4.013517e+01 |

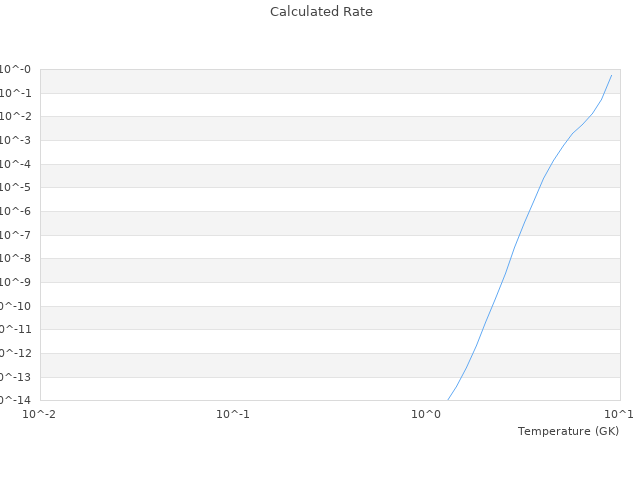

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
