Datapoints for he4 + zr120 -> p + nb123
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-316 |
| 0.15 | 1.054378e-209 |
| 0.2 | 4.426353e-156 |
| 0.3 | 1.005232e-103 |
| 0.4 | 6.452102e-79 |
| 0.5 | 8.013516e-65 |
| 0.6 | 7.692766e-56 |
| 0.7 | 1.265568e-49 |
| 0.8 | 4.842764e-45 |
| 0.9 | 1.728780e-41 |
| 1 | 1.275180e-38 |
| 1.5 | 2.359930e-29 |
| 2 | 1.060502e-23 |
| 2.5 | 1.270092e-19 |
| 3 | 1.602831e-16 |
| 3.5 | 3.983864e-14 |
| 4 | 2.867453e-12 |
| 4.5 | 7.925942e-11 |
| 5 | 1.053983e-09 |
| 6 | 4.277256e-08 |
| 7 | 6.377694e-07 |
| 8 | 8.666717e-06 |
| 9 | 2.170740e-04 |
| 10 | 1.746717e-02 |

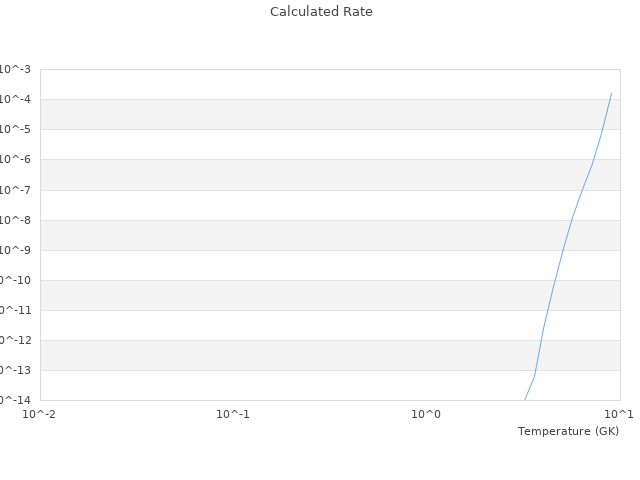

| View Graph | |
