Datapoints for p + nb136 -> he4 + zr133
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.975778e-97 |
| 0.15 | 1.109414e-62 |
| 0.2 | 6.162767e-46 |
| 0.3 | 5.676895e-31 |
| 0.4 | 5.309229e-25 |
| 0.5 | 3.354633e-22 |
| 0.6 | 1.038421e-20 |
| 0.7 | 8.324830e-20 |
| 0.8 | 3.570821e-19 |
| 0.9 | 1.149492e-18 |
| 1 | 3.269891e-18 |
| 1.5 | 4.999032e-16 |
| 2 | 8.195903e-14 |
| 2.5 | 8.846066e-12 |
| 3 | 4.682729e-10 |
| 3.5 | 1.144218e-08 |
| 4 | 1.366911e-07 |
| 4.5 | 8.896301e-07 |
| 5 | 3.576644e-06 |
| 6 | 2.252101e-05 |
| 7 | 8.650501e-05 |
| 8 | 4.430611e-04 |
| 9 | 5.725148e-03 |
| 10 | 3.128889e-01 |

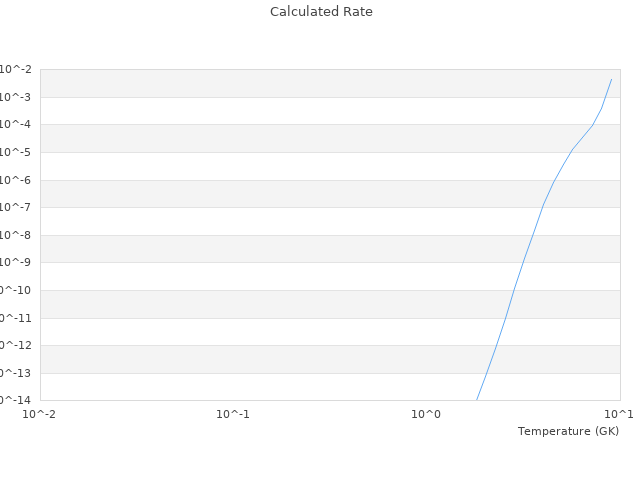

| View Graph | |
