Datapoints for p + pd93 -> he4 + rh90
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 3.152195e-264 |
| 0.2 | 1.146648e-199 |
| 0.3 | 3.836938e-133 |
| 0.4 | 1.113867e-99 |
| 0.5 | 7.581513e-80 |
| 0.6 | 7.454254e-67 |
| 0.7 | 9.864844e-58 |
| 0.8 | 5.462411e-51 |
| 0.9 | 8.474864e-46 |
| 1 | 1.139552e-41 |
| 1.5 | 3.704966e-29 |
| 2 | 2.065549e-22 |
| 2.5 | 6.840667e-18 |
| 3 | 1.554162e-14 |
| 3.5 | 6.516548e-12 |
| 4 | 8.286844e-10 |
| 4.5 | 4.290418e-08 |
| 5 | 1.102316e-06 |
| 6 | 1.542543e-04 |
| 7 | 5.290008e-03 |
| 8 | 8.012914e-02 |
| 9 | 8.358427e-01 |
| 10 | 8.512436e+00 |

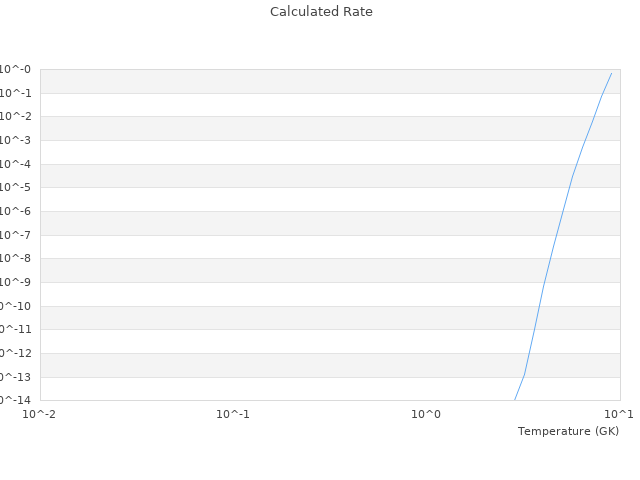

| View Graph | |
