Datapoints for p + rh135 -> pd136
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.283047e-40 |
| 0.15 | 1.527270e-30 |
| 0.2 | 1.056587e-25 |
| 0.3 | 1.578869e-20 |
| 0.4 | 1.383437e-17 |
| 0.5 | 1.446611e-15 |
| 0.6 | 4.873402e-14 |
| 0.7 | 8.158047e-13 |
| 0.8 | 8.494353e-12 |
| 0.9 | 6.269546e-11 |
| 1 | 3.563163e-10 |
| 1.5 | 1.853375e-07 |
| 2 | 1.005829e-05 |
| 2.5 | 1.663454e-04 |
| 3 | 1.328665e-03 |
| 3.5 | 6.528346e-03 |
| 4 | 2.276433e-02 |
| 4.5 | 6.172107e-02 |
| 5 | 1.384011e-01 |
| 6 | 4.630014e-01 |
| 7 | 1.070489e+00 |
| 8 | 1.951668e+00 |
| 9 | 3.045688e+00 |
| 10 | 4.293310e+00 |

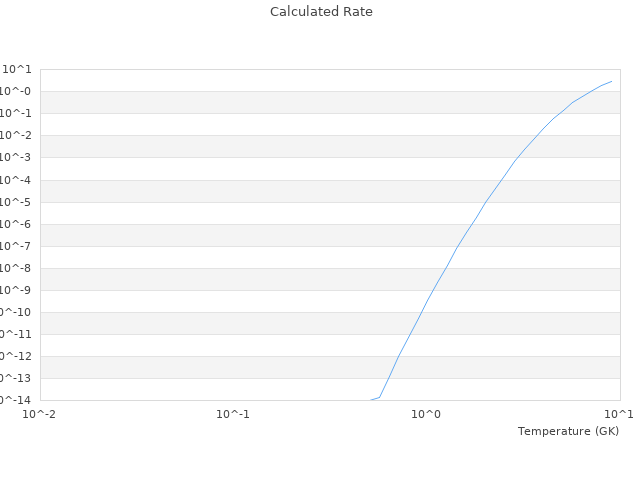

| View Graph | |
